| Size | Rough Opening Size | Light Surface (W x H)x2 | Light Surface (S.F.) | Vent Surface (W x H) | Vent Surface (S.F.) |
|---|---|---|---|---|---|
| 32X16 | 31 7/8" x 16" | 9 1/2" x 12" | 1.58 | 12 3/16" x 10 7/8" | .92 |
| 32X20 | 31 7/8" x 20" | 13 1/2" x 12" | 2.25 | 11 7/8" x 15 1/8" | 1.24 |
| 32x24 | 31 7/8" x 24" | 17 1/2" x 12" | 2.92 | 12 3/16" x 18 7/8" | 1.60 |
| 48x48 | 47 7/8" x 47 7/8" | 20 1/8" x 41 1/2" | 11.60 | 20 3/16" x 42 3/4" | 5.99 |
| 60x48 | 59 7/8" x 47 7/8" | 26 1/8" x 41 1/2" | 15.06 | 25 3/16" x 42 3/4" | 7.48 |
For those who wish to have a lighter window system during installation, the Cast In Place Vinyl Basement Window has the option of installing the glass after the home has been closed up. The frame is still poured into place but the window sashes and screen are shipped in a separate box for later installation.
Simply Egress Solutions uses the INTERCEPT spacer system on all of its insulating glass units. This allows an optional grid system that prevents grid shifting or grids that don’t match up from one window to the next. As part of Intercept’s exclusive manufacturing process, grids are made consistently to match precisely, and they’re uniquely locked in place. Plus, Intercept spacers are specially recessed below the sight line. All you’ll ever see are beautiful windows, for years and years.
Available for nominal or full wall thickness of 8", 9", 10", and 12".
Cast in Place Vinyl Basement Window Option
Constructed of rigid PVC extrusion with a wall thickness of .060”, the vinyl basement slider sill riser provides the basis for our aesthetically pleasing, equal light, glass panel design between the fixed and the sliding sash. The design utilizes a solid, snap fit leg construction to avoid shipping damage or loss. This design also allows for unobstructed drainage clearance under the sash panel.
Sliding Sash
Sill Riser
Testing and Performance
The fixed meeting rail is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .060” on the exterior walls and .050” on the interior walls. It is then reinforced with a mullion stiffener which provides a very rigid center post that does not twist or deflect with larger size window openings. The rail is attached to the main frame with four 2-1/2” long anti-corrosive stainless steel screws. It also contains an integral channel with a built in catch slot which receives the lock sweep mechanism enhancing security and thermal protection.
Fixed Meeting Rail
The Simply Egress Solutions Cast in Place Double Glazed Vinyl Basement Window allows the entire frame and basement window to be poured in place. OSB board and polystyrene protect the basement window frame and glass during the construction process. It remains in place until the contractor or home owner are ready to remove it by following the simple instructions. For additional information and technical data on the Simply Egress Solutions Cast in Place Vinyl Basement Window view the information below.

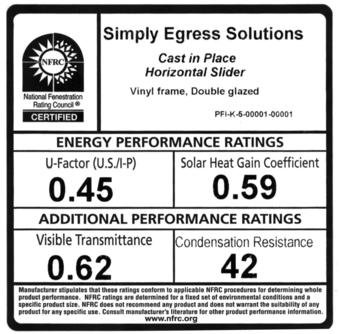

The Simply Egress Solutions Cast In Place Vinyl Basement Window has been tested in compliance with NFRC 100, 200, 300, 400 and 500 criteria. Clear glass/Air/Clear glass (clear CIP window) performs to a .45 U factor as tested by NFRC with Solar Heat Gain Coefficient of .59, Visible Transmittance of .62, Condensation Resistance of 42.

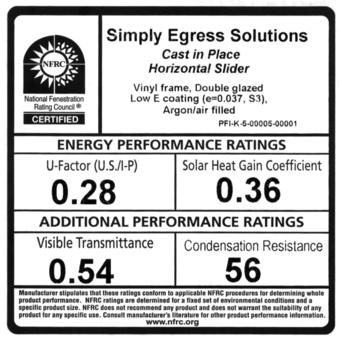

CS40 Low-E Glass/Argon/Clear (Low-E Argon filled CIP window) is available and performs to a U-factor of .28 as tested by the NFRC with Solar Heat Gain Coefficient of .36, Visible Transmittance of .54, Condensation Resistance of 56.
glazing
cast in place Double Glazed slider
Vinyl Basement window
Optional Grid System (Muntin)
The main frame is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .060” on the exterior walls to .045” on the interior walls. It provides an excellent thermal barrier against all types of climate conditions. Our high tech, four head welding line provides an all welded construction. This allows accurate product sizing, quality, and it guarantees a leak proof corner. Our unique heavy-duty dual wall exterior flange provides an aesthetically appealing appearance. Frame sizes are available in 32"x16", 32"x20", 32"x24", 48"x48", and 60"x48" for nominal or full wall thickness of 8", 10", and 12".
The sliding sash is constructed of rigid PVC hollow extrusion with a wall thickness ranging from .075” on the pull handle to .050” on the interior walls. The sash is welded on all four corners to insure a rigid and accurate sash that matches perfectly with the frame construction. Anti-corrosive, dual brass roller assemblies allow finger tip control for opening and closing the sash and provides years of trouble free performance. Integral interlocking webbing on the sash and meeting rail ensure a positive interlock in the center of the window further enhancing security and thermal performance.
Cast In place Double Glazed slider Vinyl Basement Window
size and technical information
Main Frame
To provide a thermal barrier against all climate conditions, the hinged sash is equipped with strips of fin seal weather stripping.
Weather Stripping
An insulated glass package designed with a 3/4” overall thickness, utilizing the INTERCEPT spacer system, provides the ultimate in “Warm Edge” spacer technology. The glass assembly is built in our own high-tech window manufacturing facility on the INTERCEPT Roll Forming System from GED. We are pleased to provide our customers with the highest quality glazing on the market today. The main frame and sliding sash are glazed with a continuous bead of high quality silicone adhesive, which is applied by robots for accuracy and consistency.
